Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SHENGHUA
  • Model Number: SH-LXXXX
  • Tag Size: 4*2 / 4*6 / 4*4 / 4*1 inch (Customized Design )
  • Frequency: 860~960MHz
  • Standard: EPC CLASS1 GEN2; ISO 18000-6C
  • Operating Temp: -30~50(Celsius)
  • Operating Mode: R/W
  • Memory Size: 96bit/512bit
  • Data Storage Time: >10 years
  • Life Cycle: 100,000 cycles
  • Anti-interference: GOOD
  • Material: PET+AL



Product Description

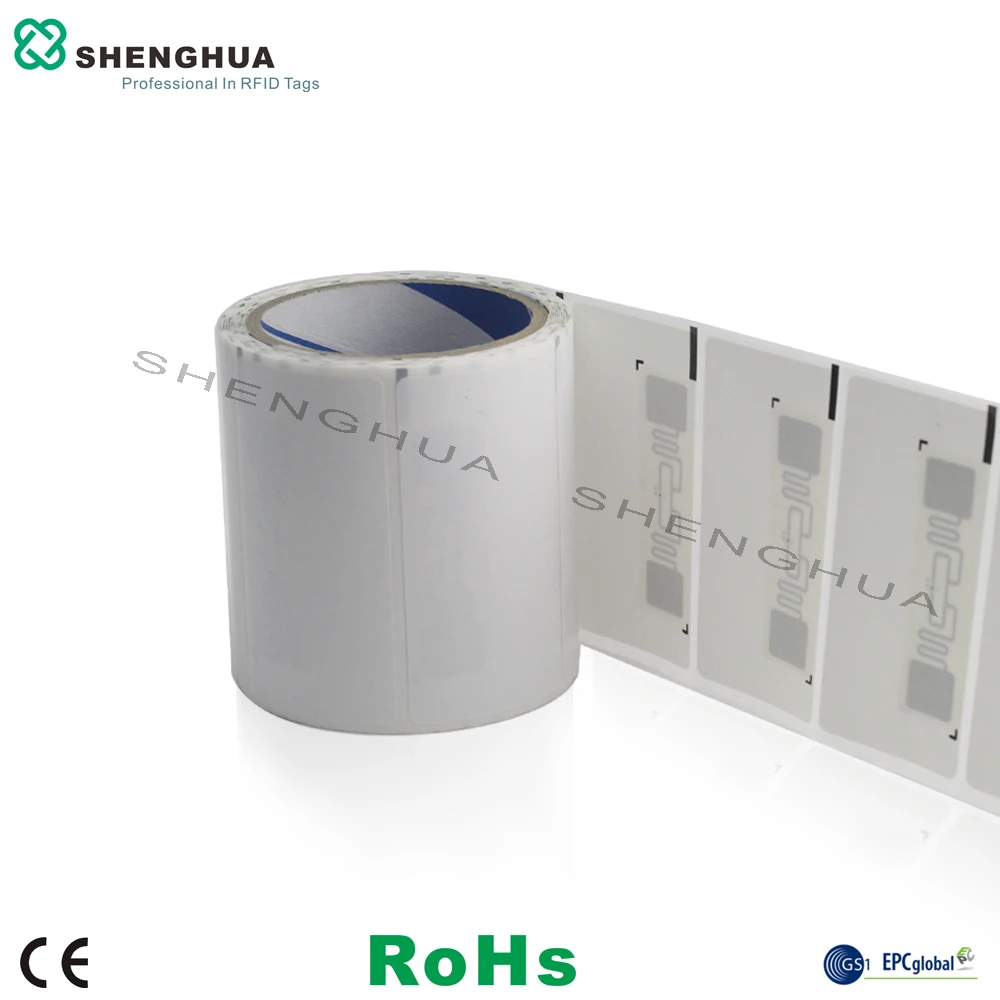

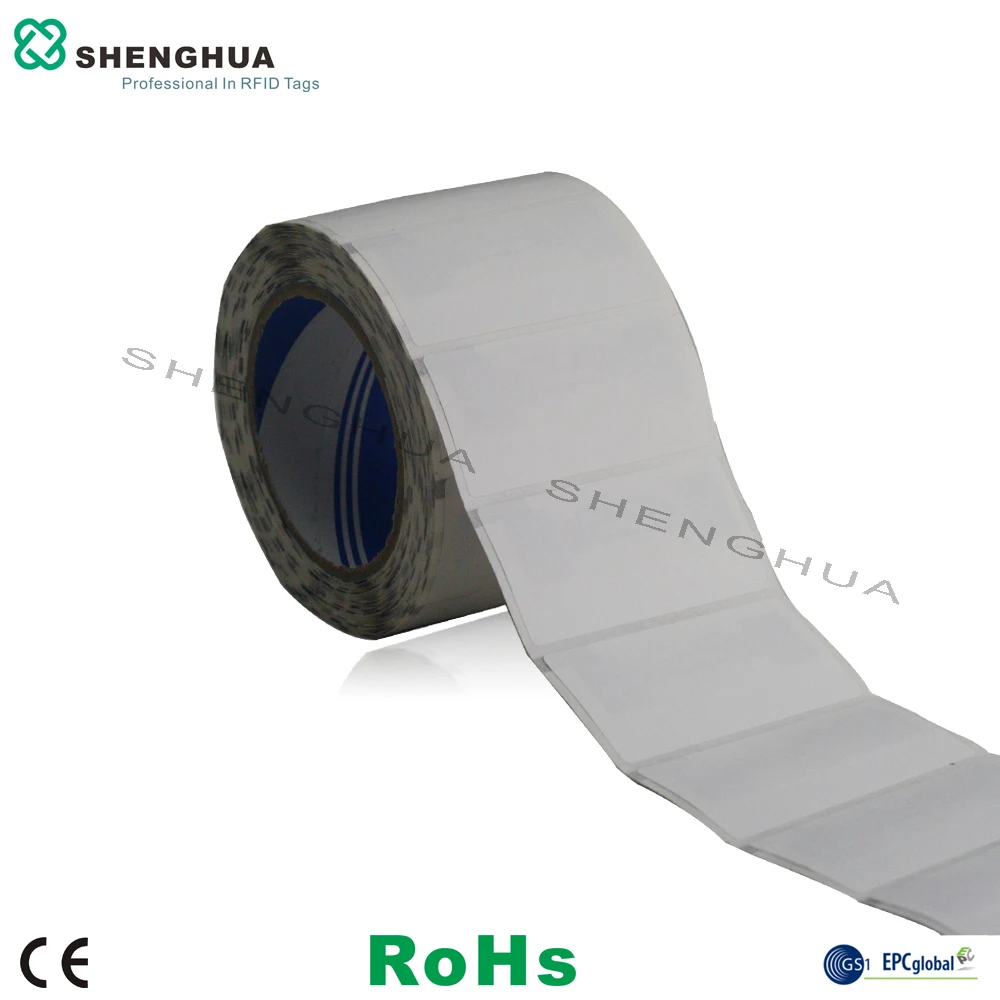

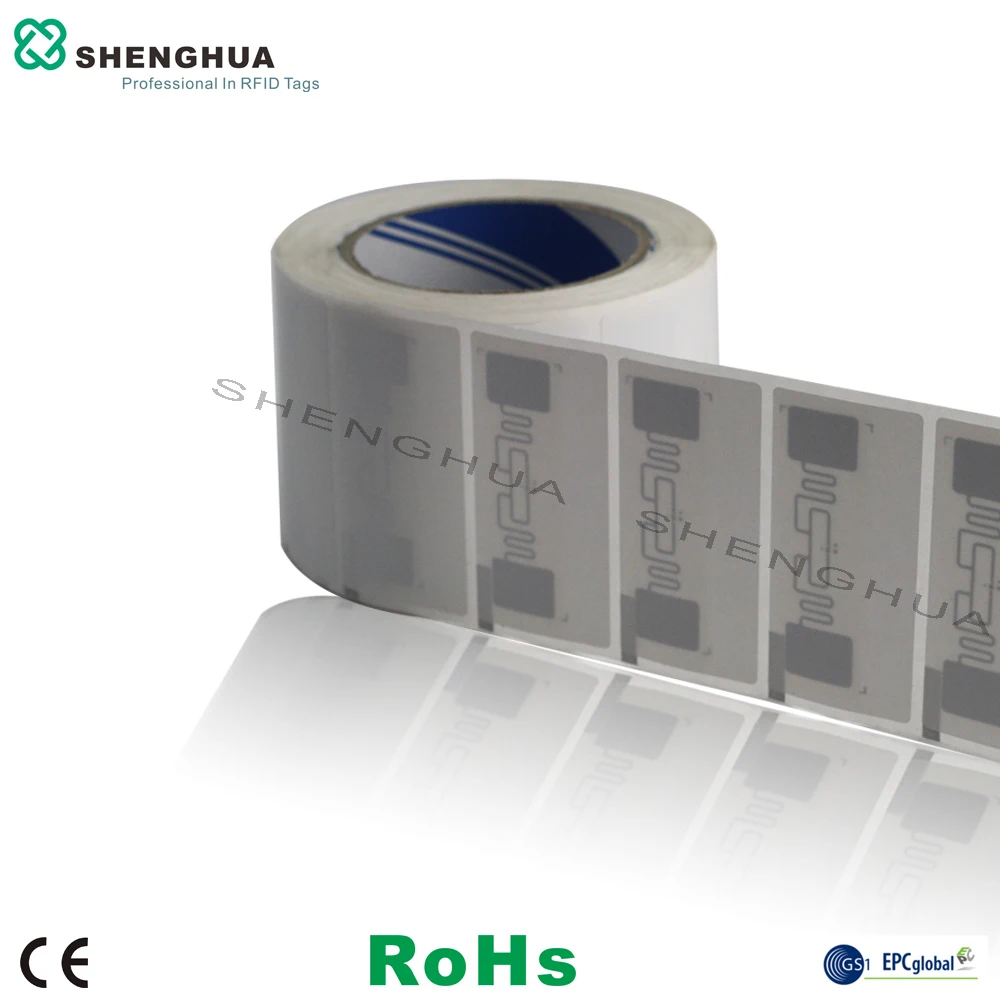

Lastest Passive Paper UHF RFID Adhesive Label

· Basic parameters
Model:SH-L8040
Type:UHF passive RFID tags
Frequency:860~960MHz
Standards/Protocols:EPC CLASS1 GEN2,ISO 18000-6C
· Physical parameters
Size:80*40mm=3.15*1.57inch (Customized Design)
Inlay Material:PET+AL
Outer Material:Copper paper/PET/PVC/Thermal paper
· Performance Parameters
Memory Size:Up to 512bit
Chip:Impinj M5/Alien H3/Alien H4
Operating Mode: R/W
Reading Distance:8M(Related to reader performance and working environment)
· Environmental parameters
Operating Temp: -20~+50celsius
Storage Temp: -40~+100celsius
· Specific applications
Applications: Aviation,logistics,warehousing,retail,clothing,medical,anticouterfeiting etc.
· Packaging and delivery
Package: 2000pcs/roll

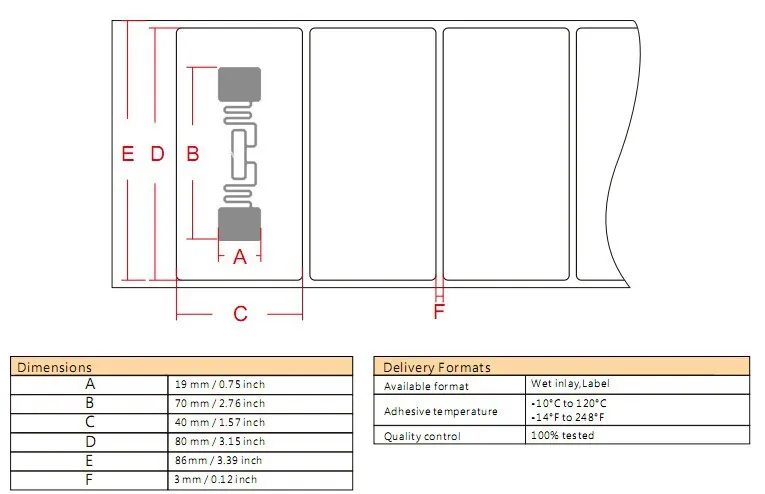

Size of SH-L8040
80*40mm




Applications


1.   Anti-counterfeit and anti-metastasis of product (fragile paper/copper paper with knife marks)

1)Anti- metastasis

It can not be used again, because it would be completely destroyed.

2)Anti-counterfeit

The unique global coding TID (tag identifier) cannot be modified after production. You can identify the authenticity of tag by integrated machine and the TID.

2.   Rewritable information of chip

RFID tags adhere to each packaging of goods, could be identified by fixed or handheld reader. And the goods’ information, which could include storage location, delivery and details, is written on the chip.

3.   Warehouse management of in and out

1)Warehouse keeper has to check each good to make sure it is qualified based on orders when it put in or out the warehouse.

2)Warehouse keeper passes the qualified goods to stored keeper.

3)The information of goods will be uploaded to the host to compare with the prior orders when it goes through the fixed reader at the warehouse entrance.

4.Real-time inventory

Collecting data by handheld reader, such as material tab, shelves and quantity.

The main job of making an inventory is scanning the labels and location data. System can classify and make an inventory of goods automatically basing on preset data.

5.Logistics management

1) The self-adhesive label can track the product’s location, status and other information during transport.

2) The software can link the ID with the product of the order.

3) Installing readers to each vehicle, then you could know a real-time status of goods, throughout the process of loading and unloading of goods.

4) In case of any error or loss of the goods, the system will send an alert.

6.The Smart Supermarket

Shopping carts can communicate with RFID systems to guide shoppers around the store. It helps shoppers manage shopping lists, pay for items, and find products in the store.

Shoppers can find the way to get items, or organize a grocery list by aisle to make shopping easier. RFID systems can also enable real-time price checks and allows customers to pay for items through the cart, without having to go through a checkout line.
